Steam Sanitary Sample Coolers

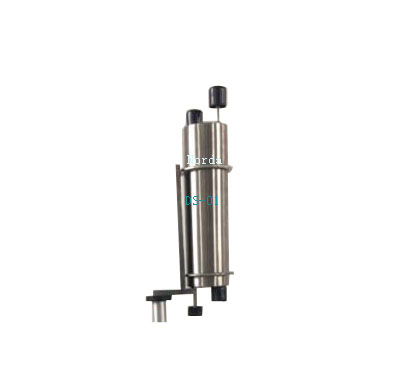

DS-01 steam Sanitary Sample Coolers

 specifically for the safe taking of high quality chemistry/TOC, conductivity and microbiological samples from steam or heated water systems.

DS-01
 steam Sanitary Sample Cooler is also available for “on line” applications.



Model: DS-01
Connection for cooling water :  3/4 Tri-Clamp
sampling connection:  1/2 Tri-Clamp
shell dimensions: φ 80mm*250mm
Coil design pressure: 15 barg
Coil surface area: 0.113M2
weight: 2.3 KG
capacities(approximate): steam 160ml/Minute
