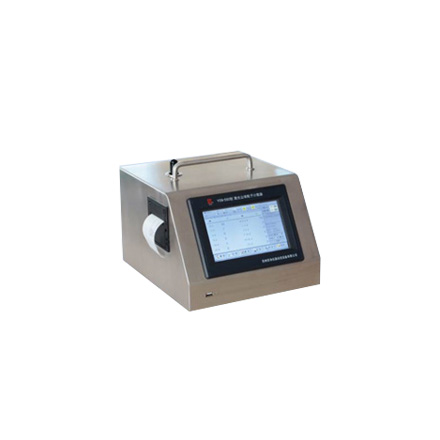

Y09-5100 Particle Counter

Y09-5100 laser particle counter (100L/min) is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, which can directly detect class A, class B clean environment. With features of using diode laser light source, large touch-screen display, small size, light weight, high precision, simple operation, microprocessor control, storing & printing the measurement results, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.

 laser particle counter Features:

1. flow rate is100 L / min.
2. AC and DC power supply for option.
3.  touch screen control operation.
4. display six-channel particle sizes, particle concentration (pcs / m3).
5. automatic UCL calculation (for the 2010 version of GMP, 1998 version of GMP, ISO14644, etc.).

 laser particle counter Specification

Outside Dim. (mm) 268*192*292（Wide*High*Deep）
Display Touch screen (LCD)
Weight 7.5 Kg
Power 80W
Power supply DC16.8V(Built-in Lithium Battery)
Size channels 0.5、1、3、5、10、25μm
Calculation 95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet)
Flow rate 100L/min (import pump)
Sample time 0~999999s (selectable)
Zero count ≤10min
Location labels 0~9999
Printer Built-in Thermal Printer
Alarm ISO / own (Class)
Date Storage 20000 Samples/300Samples of UCL(With PC Software)
Date Output USB Port
Light source Diode laser (30000 hours mean time between failures)
Max. Particle Concentration 35000particles/L
Operating time 3 hours
Working condition Temperature:10~35℃;  Humidity : 20%~75%RH;  Atmosphere Pressure: 86~106Kpa
Outside Dim. (mm) 268*192*292（Wide*High*Deep）
